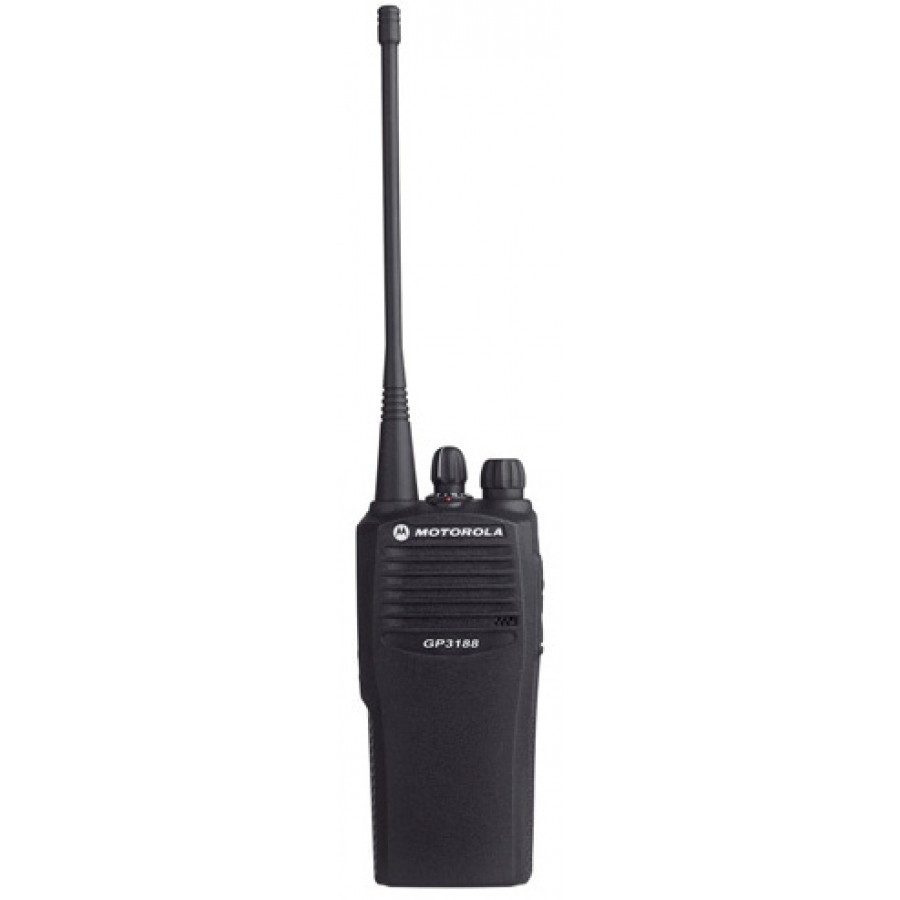

- GP3188 Specifications *
General VHF UHF
Frequency 136-162MHz, 146-174MHz 403-440MHz, 438-470MHz, 465-495MHz
Channel capacity 16 channels
Power supply 7.5V± 20%
Dimensions ( without belt clip and antenna)
With NiCd/ extended LiIon 126.5mm ( H) x 61.5mm ( W) x 45mm ( D)
With standard NMH 126.5mm ( H) x 61.5mm ( W) x 43mm ( D)
With slim LiIon 126.5mm ( H) x 61.5mm ( W) x 42mm ( D)
Weight ( without belt clip and antenna)
With extended LiIon 351g
With slim LiIon 350g
With standard NMH 417g
With NiCd 406g
Average Battery Life@ 5-5-90 Duty Cycle Hi Power ( 5W) Low Power ( 1W) Hi Power ( 4W) Low Power ( 1W)
With extended LiIon 14hrs 19hrs 14hrs 19hrs
With slim LiIon 12hrs 17hrs 12hrs 17hrs
With standard NMH 10hrs 13hrs 10hrs 13hrs
With NiCd 8hrs 10hrs 8hrs 10hrs
Receiver+ VHF 12.5 kHz VHF 20/ 25kHz UHF 12.5 kHz UHF 20/ 25kHz
Frequency 136-162MHz, 146-174MHz 403-440MHz, 438-470MHz, 465-495MHz
Sensitivity 12dB EIA SINAD 0.25uV 0.25uV
Adjacent Channel Selectivity -65dB -70dB -60dB -70dB
Intermodulation -70dB -70dB
Frequency Stablility ( -30° C to + 60° C) 0.00025% 0.00025%
Spur Rejection -75dB -75dB
Hum and Noise -45dB@ 12.5kHz -50dB@ 25kHz
Image and 1/ 2 I-F Rejection -70dB -70dB
Audio Ouput @ < 5% Distortion 500mW 500mW
Transmitter VHF VHF UHF UHF
Frequency 136-162MHz, 146-174MHz 403-440MHz, 438-470MHz, 465-495MHz
Channel Spacing 12.5/ 20/ 25kHz 12.5/ 20/ 25kHz
Frequency Stablility ( -30° C to + 60° C) 0.00025% 0.00025%
Spurs/ Harmonics -36 dBm 1GHz
Audio Response
( from 6dB/ oct. Premphasis, 300 to 3000Hz) + 1, -3dB + 1, -3dB
Audi Distortion
@ 1000Hz, 60% Rated Max. Dev.
