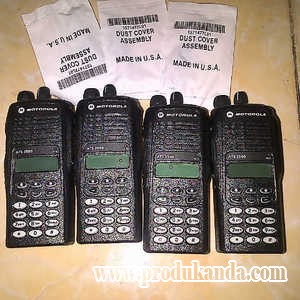

FETAURE GENERAL HANDY TALKY MOTOROLA ATS-2500 :
Maximum Number of Modes 16 160 16 250
Systems
Maximum Number of Systems 16 20 16 20
Max Number of Talkgroups / Personality 15 15 15 15
Max Number of Personality 16 50 16 50
Channel/ Zone Selection via Menu -
-

Caller ID- Text Alias N/ A
N/ A

Low Battery Indication




Out of Range Indicator




Microphone Automatic Gain Control ( TX)




Time-Out-Timer Programmable via RSS




Vaiable F Power Level




TRUNK MODE
Group Call/ Announcement Call




Pivate Call/ Call Alert/ Telephone Encode


Pivate Call/ Call Alert/ Telephone Decode




One-Touch Button


Trunking Scan




Selective Radio Inhibit




Emergency


Remote Monitor


Dynamic Regroup


Reprogram Request


Status/ Message ( encode only)

AMSS




SMARTZONE ( RSSI Site/ 32 element cc etc)




Voice on Control


OMNILINK Capable   Optional* * Optional* *
CONVENTIONAL SIGNALING
PL/ DPL/ CSQ




Monitor




Conventional Scan




MDC -1200   Optional* * Optional* *
Voting Scan N/ A N/ A Optional* * Optional* *
ATS2500 ( keypad & non-keypad) Specifications
GENERAL - VHF, UHF ATS2500 Model I ATS2500 Model II
* Frequency: 136 - 174 / 330 - 400 / 403 - 470 / 450-527 / 800
Power Supply: Provided through rechargeable battery - 7.5V
DIMENSIONS:
H x W x D ( Radio footprint height excluding knobs)
With Standard High Capacity NiMH Battery: 137 mm x 57.5 mm x 37.5 mm
With Ultra High Capacity NiMH Battery: 137 mm x 57.5 mm x 40.0 mm
With NiCD Battery: 137 mm x 57.5 mm x 40.0 mm
With LiIon Battery: 137 mm x 57.5 mm x 33.0 mm
WEIGHT:
With Standard High Capacity NiMH Battery: 420 gm 428 gm
With Ultra High Capacity NiMH Battery: 508 gm 508 gm
With NiCD Battery: 450 gm 458 gm
With LiIon Battery: 350 gm 358 gm
AVERAGE BATTERY LIFE @ 5/ 5/ 90 CYCLE Low Power High Power
With Standard High Capacity NiMH Battery: 11 hours 8 hours
With Ultra High Capacity NiMH Battery: 14 hours 11hours
With NiCD Battery: 12 hours 9 hours
With LiIon Battery: 11 hours 8 hours
Sealing: Withstands rain testing per MIL STD 810 C/ D/ E and IP54
Shock and Vibration: Protection provided via impact resistant housing exceeding MIL STD 810-C/ D/ E and TIA/ EIA 603
Dust and Humidity: Protection provided via environment resistant housing exceeding MIL STD 810 C/ D E and TIA/ EIA603
